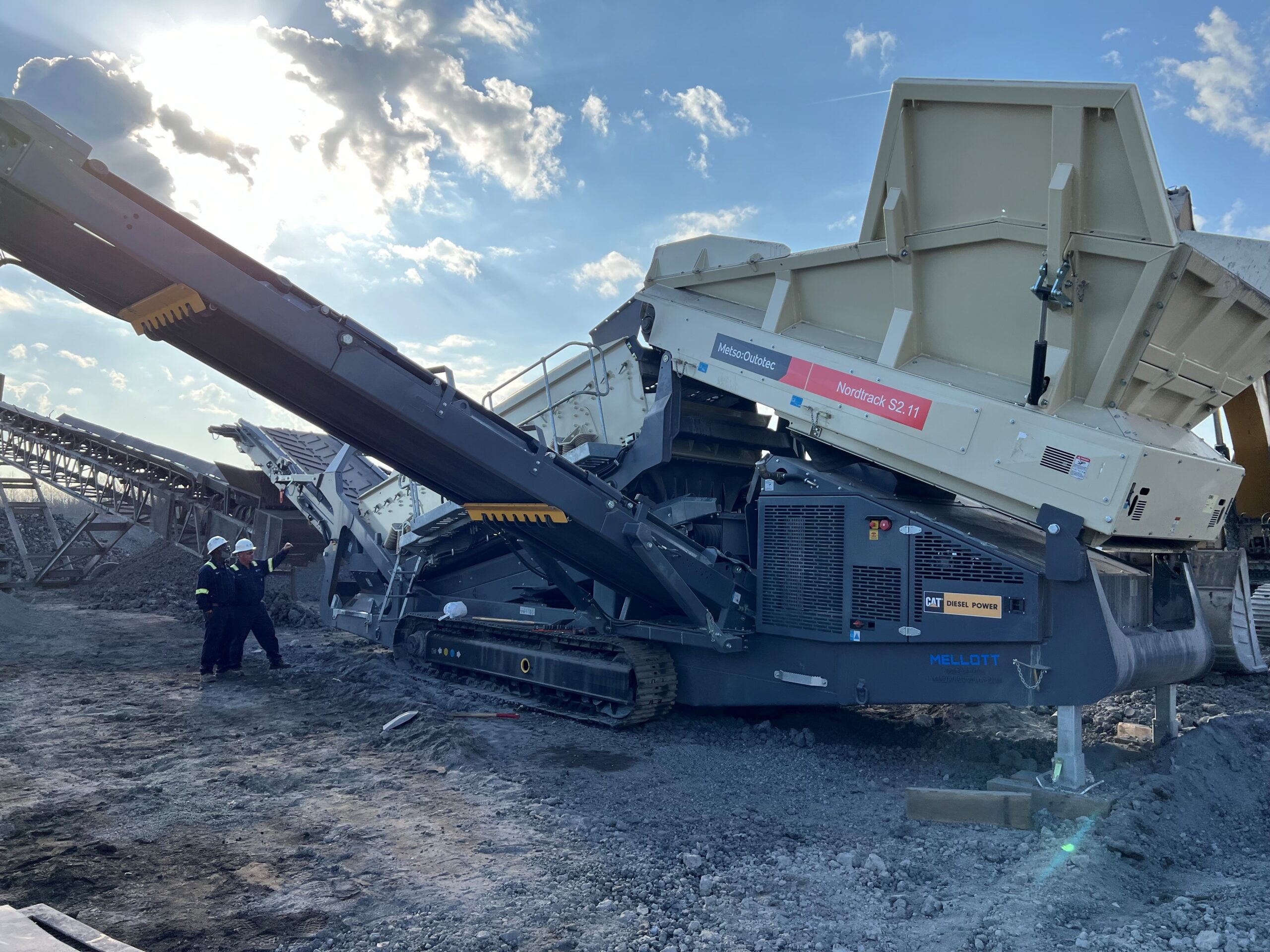

Used Metso Nordtrack S2.11 Screening Plant

Name: Used Metso Nordtrack S2.11 Screening Plant
SKU: 4705
Availability: InStock

The Metso Nordtrack S2.11 is a mobile scalping screen that is flexible enough to screen a wide variety of feed materials. It is ideal for aggregate, recycling and demolition applications.

Categories: Equipment Specials, Metso, Mobile Plants, Nordtrack Mobile Screening Plants, Tracked Tags: Metso, Used Metso S2.11 Screen Plant

Feeding Unit
* Feeding unit type – Belt feeder

Screening Unit
* Screening unit – S2.11 two deck screen
* Screen media type, top deck – Support deck only

Power Unit
* Diesel Engine – CAT C7.1
* Emission class – Tier 4F
* Oil selection – Standard (Up to 40C/104F)

Conveyors
* Oversize conveyor – Standard
* Side conveyor, mid size – Standard
* Side conveyor, undersize – Standard
* Undersize conveyor – Standard

Optional Equipment
* Reverse side fines conveyor – No change
* Working lights – Included
* Remote control for tracking – Included
* Remote control other function – Included
*Two-way Split – Two side Conveyors

Finishing
* Color – Metso beige
* Safety labels – ANSI

Product Specifications

Brand	Metso
Product Line	Nordtrack
Power	200-400 HP
Capacity	Contact Mellott for more information on our product line and their optimal capacities – mobile plants, conveyors, rock crushers and more.Contact us for more info

Additional Specifications

Screen size	Top deck 6,100 x 1,800 mm (20’ x 6’), bottom deck 5,500 x 1,800 mm (18’ x 6’)
Decks	2
Feed Hopper	11,5 m³ / 15,0 yd³
Engine	Tier 3 LRC: CAT® C7.1 165 kW (225 hp) / Stage IIIB: CAT® C7.1 CSE 209 kW (281 hp) / Tier 4F / Stage V: CAT® C7.1 165 kW (225 hp)
Weight	37,200 kg (82,000 lbs)
Transport width	3,000 mm (9' 10")
Transport height	3,600 mm (11' 8.8")
Transport length	17,000 mm (55' 8")
Included in standard configuration	Remote controller for tracks, working lights
Options	Apron feeder, Two-way split, Kit for side conveyors on same side, Water spraying system with pump, Extra remote controller for feeder functions, Bi-Power system to drive hydraulic circuit (on request)
