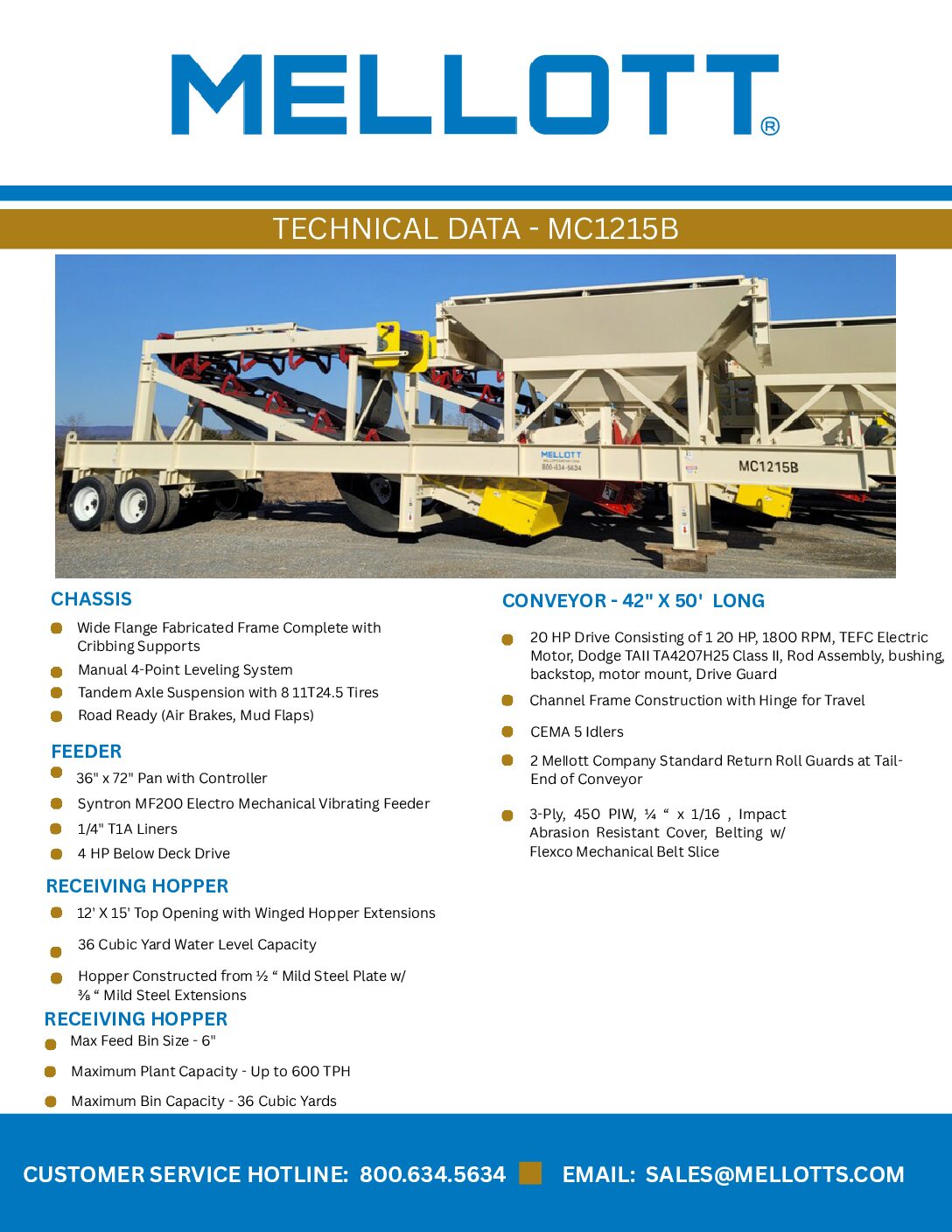

- Wide flange fabricated frame complete with cribbing supports
- Manual 4-point leveling system
- Tandem axle suspension with eight (8) 11R24.5 Tires
- Road ready (air brakes, mud flaps)
Feeder
- Syntron MF200 Electro mechanical vibrating feeder
- 36″ x 72″ pan with controller
- 1/4″ T1A liners
- 4 HP Below deck drive
Receiving Hopper
- 12′ x 15′ top opening with winged hopper extensions
- 36 cubic yard water level capacity
- Hopper constructed from 1/2″ mild steel plate with 3/8″ mild steel extensions
- Feeder skirts with manual level control gate
Bin
- Max feed size–6″
- Maximum plant capacity–up to 600 TPH
- Maximum bin capacity–36 cubic yards
Conveyor
- 20 HP drive consisting of one (1) 20 HP, 1800 RPM TEFC electric motor, Dodge TAII TA4207H25 class II reducer, rod assembly, bushing, backstop, motor mount, drive guard
- Channel frame construction with hinge for travel
- CEMA C5 Idlers
- Two (2) Mellott standard return roll guards at tail-end of conveyor
- 3-ply, 450 PIW, 1/4″ x 1/16″, impact abrasion resistant cover, belting with Flexco mechanical belt slice
