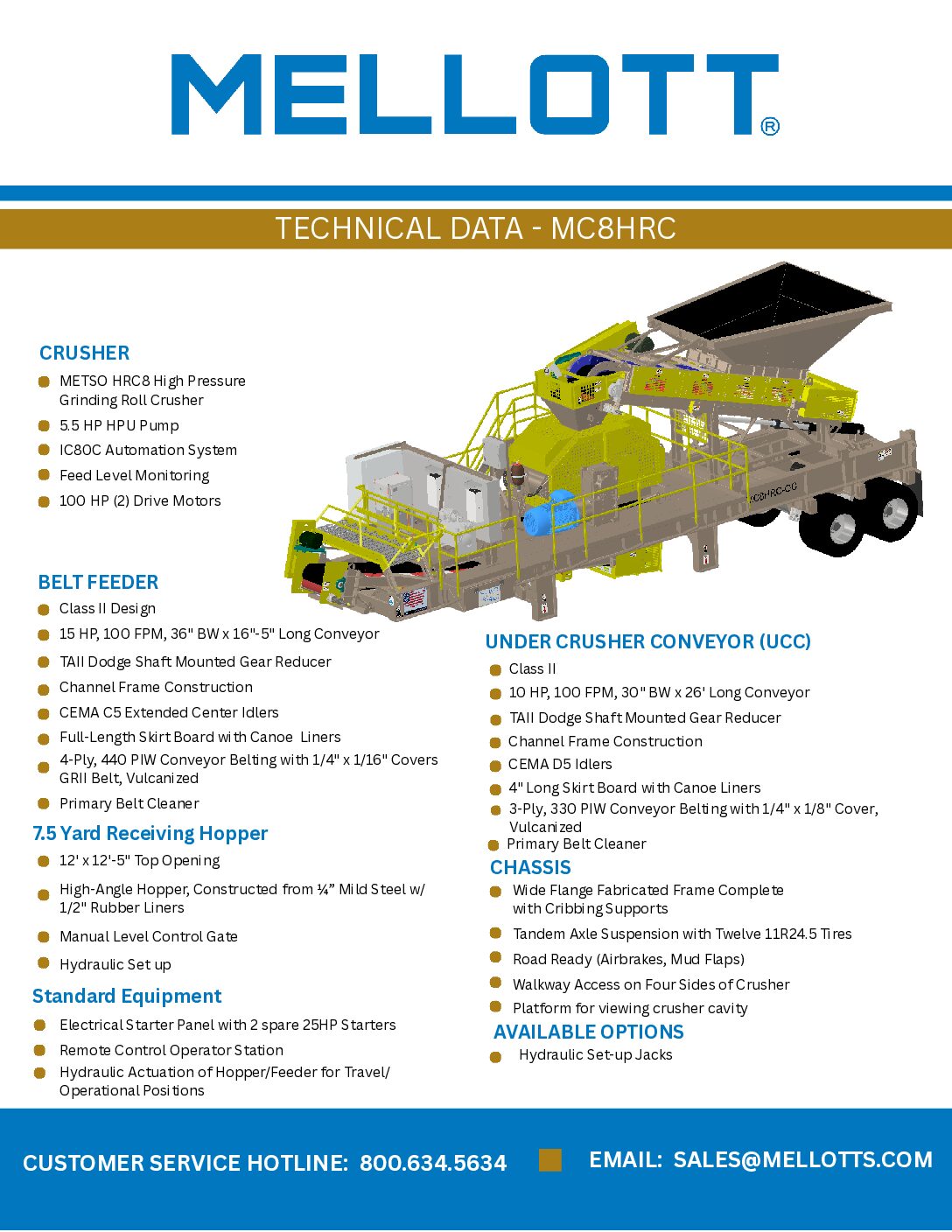

Crusher
- METSO HRC8 High Pressure
Grinding Roll Crusher - 5.5 HP HPU Pump
- IC80C Automation System
- Feed Level Monitoring
- 100 HP (2) Drive Motors
Belt Feeder
- Class II Design
- 15 HP, 100 FPM, 36″ BW x 16″-5″ Long Conveyor
- TAII Dodge Shaft Mounted Gear Reducer
- Channel Frame Construction
- CEMA C5 Extended Center Idlers
- Full-Length Skirt Board with Canoe Liners
- 4-Ply, 440 PIW Conveyor Belting with 1/4″ x 1/16″ Covers
GRII Belt, Vulcanized - Primary Belt Cleaner
7.5 Yard Receiving Hopper
- 12′ x 12′-5″ Top Opening
- High-Angle Hopper, Constructed from ¼” Mild Steel w/
1/2″ Rubber Liners - Manual Level Control Gate
- Hydraulic Set up
Standard Equipment
- Electrical Starter Panel with 2 spare 25HP Starters
- Remote Control Operator Station
- Hydraulic Actuation of Hopper/Feeder for Travel/
Operational Positions
Under Crusher Conveyor (UCC)
- Class II
- 10 HP, 100 FPM, 30″ BW x 26′ Long Conveyor
- TAII Dodge Shaft Mounted Gear Reducer
- Channel Frame Construction
- CEMA D5 Idlers
- 4″ Long Skirt Board with Canoe Liners
- 3-Ply, 330 PIW Conveyor Belting with 1/4″ x 1/8″ Cover,
Vulcanized - Primary Belt Cleaner
Chassis
- Wide Flange Fabricated Frame Complete
with Cribbing Supports - Tandem Axle Suspension with Twelve 11R24.5 Tires
- Road Ready (Airbrakes, Mud Flaps)
- Walkway Access on Four Sides of Crusher
- Platform for viewing crusher cavity
Available Options
- Hydraulic Set-up Jacks
